GARMINAirmar B175H (12° Tilt)

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4" outside the hull and can sit on the trailer rollers/bunks without damage.

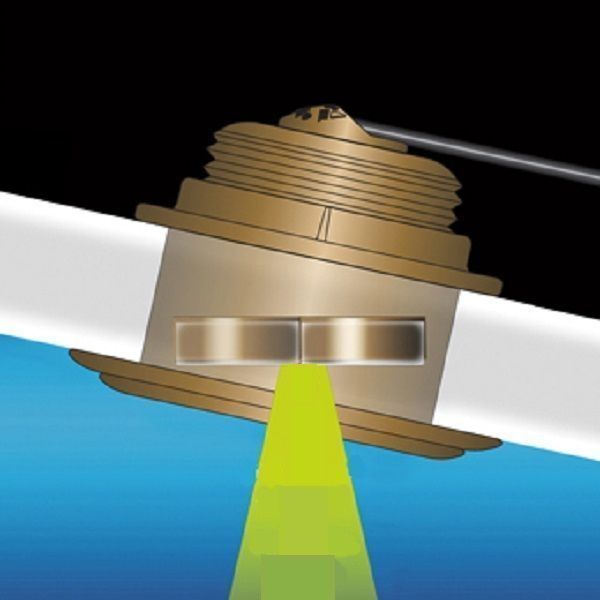

The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies.

An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 3,000 ft; an operating frequency of 85-135 kHz; a beamwidth of 11-16 degrees; and a 8 to 15 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat
