FUSIONMarine Entertainment System Black Box with Wired Remote

419,99 $

Où se procurer ce produit ?

Trouver le point de vente le plus près

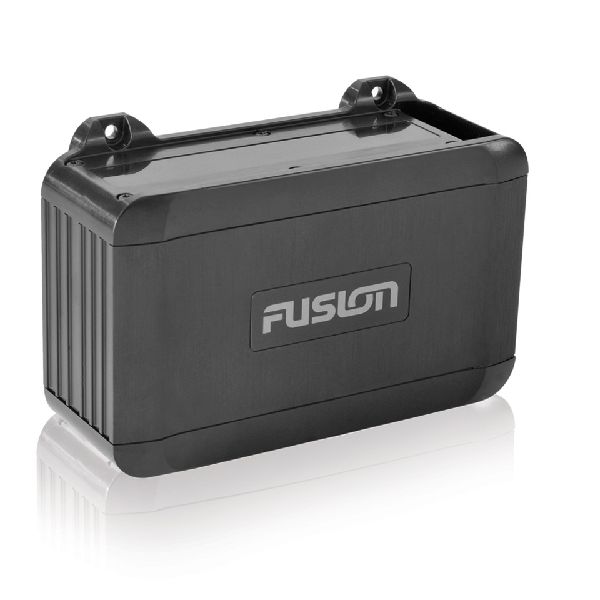

Marine Entertainment System Black Box with Wired Remote

Liste des accessoires disponibles

*** Version Française en production***


Sources: AM/FM / USB / AUX / iPhone / iPod / Android AOA / Bluetooth / DAB+ Ready (Requires MS-DAB100A)


Introducing the MS-BB100, a compact black box entertainment solution that incorporates the marine industry supported Fusion-Link protocol and Fusion`s proven marine engineering skillset to deliver a boat load of tunes. An industry first, the BB100 includes an easy touch Bluetooth embedded IPx7 water resistant remote for quick audio adjustments. Supplied with a 2m (6.6ft) connection cable, the wired remote is ideally shaped for hassle free installation onto a dash or boat console. With the Bluetooth receiver embedded into the remote we can reduce the likelihood of interference occurring between your smartphone and the receiver. Engineered for either a flush or flat mount installation, you can choose the finish to suit your vessel.

UPDATE: Now with added support for Fusion-Link Lite via ANT for Garmin watch control.


Features:


  • Small footprint Black Box design with included Bluetooth embedded wired remote
  • A2DP Bluetooth Audio streaming with FUSION-Link app remote control available
  • AM / FM Radio Tuner with support for DAB Radio (MS-DAB100A Module and Antenna Package)
  • USB MP3 Playback with support for Apple iAP2 and Android AOA music
  • IPx7 water resistant wired remote with quick Bluetooth pairing
  • Flush or flat mounting remote control installation options
  • Fusion-Link NMEA 2000 Ready for connection and control from any supported Multi-Function Display
  • Multi-Zone Control (2 Zone System) Works with a NRX Series remote control when installed on a powered network (additional cabling required)

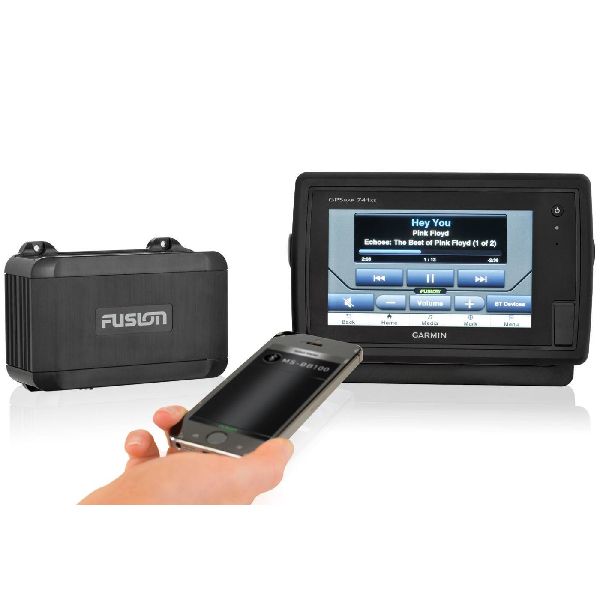

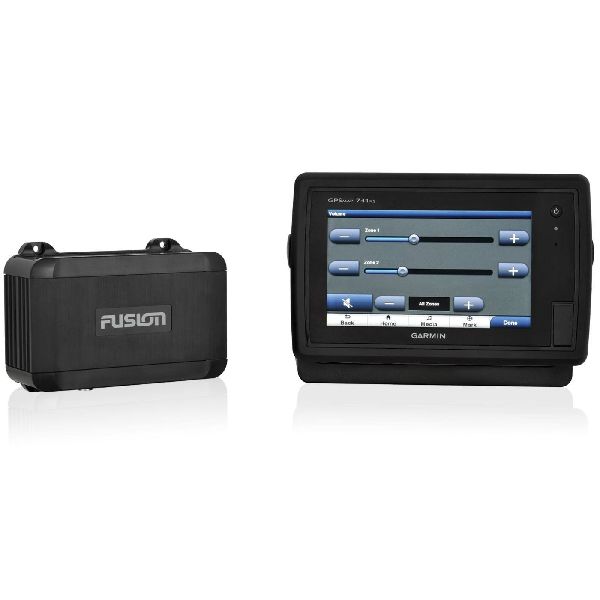

Operating the advanced Fusion-Link wired protocol via NMEA 2000, the MS-BB100 will interface with any supported Multi-Function Display for on-screen control. The newly updated Fusion-Link wireless remote app for Apple® and Android™ devices enables on-the-go control of the entertainment within Bluetooth range onboard your vessel.


The Fusion-Link Wireless Remote Control for iPad or iPhone is available for FREE download from the Apple app store


The Fusion-Link Wireless Remote Control for Android is available for FREE download from Google Play


Stream music from your favorite apps such as Pandora or Spotify, then switch to the remote app for zone adjustments, volume control and source selection. Supporting USB MP3 audio, Apple IAP2 and Android AOA playback the BB100 offers the users the ability to play, pause and skip tracks from the included wired remote, MFD or wireless app remote.


With two independent audio zones available, each with advanced localized menu controls, including zone naming, you can easily customize and control your listening experience in each zone. Note: Line Out/Sub Out requires additional amplification.


For a localized wired remote solution, the NRX Series can be utilized with the BB100 when operating over a powered NMEA network.


Designed to be tucked away out of sight, saving valuable space at the helm, the MS-BB100 is easy to install. Simply secure, plug and play for effortless entertainment.





Audio Sources


The MS-BB100 offers a range of audio source options to enrich your onboard audio entertainment experience. Including AM/FM Tuner, A2DP Bluetooth® Streaming with FUSION-Link Bluetooth app remote control available, support for Apple® and Android™ AOA music playback and support for the latest DAB and DAB+ digital radio broadcasts (when the MS-DAB100A module and antenna package is incorporated into the system).





Product Specifications

Tuner

AM/FM with RDS (via connected MFD, Fusion NMEA 2000 remote or Fusion-Link app where available)

Tuner Region

USA, Australasia, Europe and Japan

Audio Zones

2 on board amplified zones

Nameable Zones

Up to 10 characters per zone

Line Out

1 x L+R per zone (requires amplification)

Subwoofer Out

1 x Sub Out Linked to Zone 1 (requires amplification)

Auxiliary Inputs

1 x Stereo RCA Input (AUX)

iPod/iPhone

Made for iPod and iPhone - supports IAP 2 protocol only

Android Open Accessory (AOA)

Android support is limited to devices which support AOA protocol, see supported device list for details

DAB+ Ready

MS-DAB100A is required for DAB support, only available where DAB and DAB+ is broadcast

Garmin watch app via ANT

VivoActive/HR, Fenix 3/HR, Fenix 5/S/X, Quatix 3, D2 Bravo/Titanium, Fenix Chronos, Forerunner 935 - Fusion-Link app via Garmin Connect IQ

Fusion-Link Wireless

Bluetooth remote control is available with the Fusion-Link remote control app available for download from Apple app store or Google Play

Fusion-Link Wired

Compatible with a Fusion NMEA 2000 wired remote control and any supported Fusion-Link MFD. A powered network is required for remote support

NMEA 2000 Certified

LEN:1

Bluetooth

A2DP Bluetooth Audio Streaming with AVRCP

USB

1 x USB connector at the rear of the unit, supports 1 amp charging

Audio Format USB

MP3

Water Resistance

IPx7 water resistant remote from the front panel when correctly mounted. Black Box is rated IPx3

Amplifier

Class-AB 4 x 50W (@ 4 Ohms)


Apple Compatibility
