Pilot II Displays,
- Tachometer
- Engine Running Only Hourmeter
- Fuel Management
- Fuel Remaining
- Fuel Flow
- Total & Trip Fuel Log
- Digital Fuel Level
- Engine Temperature
- Oil Pressure
- Digital Trim

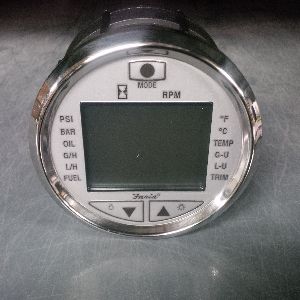

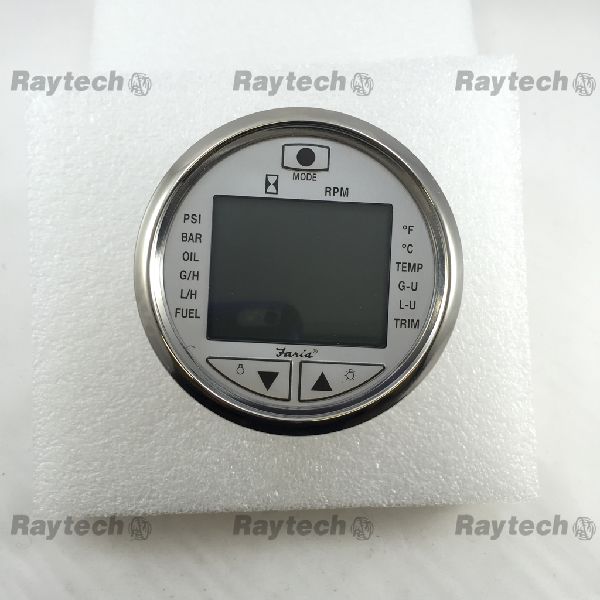

The Faria Pilot II system is a multifunctional instrument designed to give two simultaneous readouts of several different and independent functions on an upper and lower LCD display. A digital Bar Graph provides continuous display of either Trim or Fuel Level.

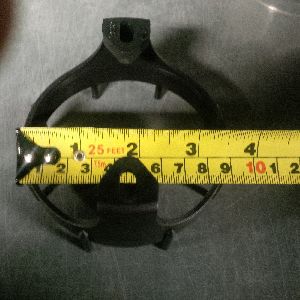

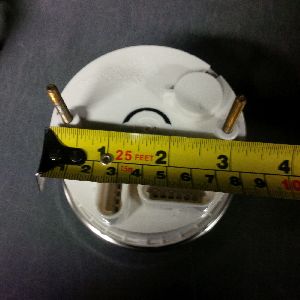

The Faria Pilot II system is fitting a 3-3/8'' hole. This unit work with the harness HN0363 4-pin or 6-pin connector Yamaha adaptor or HN0366 4-pin or 6-pin connector adaptor or HN0374 4-pin or 6-pin connector Honda adaptor using the 4-pin CN0082 or 6-pin CN0083 connector.
Connection schematics came in the Owner's Manual IS0153b that came with the unit, you have also the Quick Reference Guide IS0180a provide with the unit.
