Flat Mount Card Reader | DATA CARD | ON THE WATER ACCESSORIES | Marine equipement

Accessories available for this product

GARMIN Flat Mount Card Reader $279.99 Accessories available View accessories
GARMIN Trim Piece Snap Cover (Card Reader) $32.49

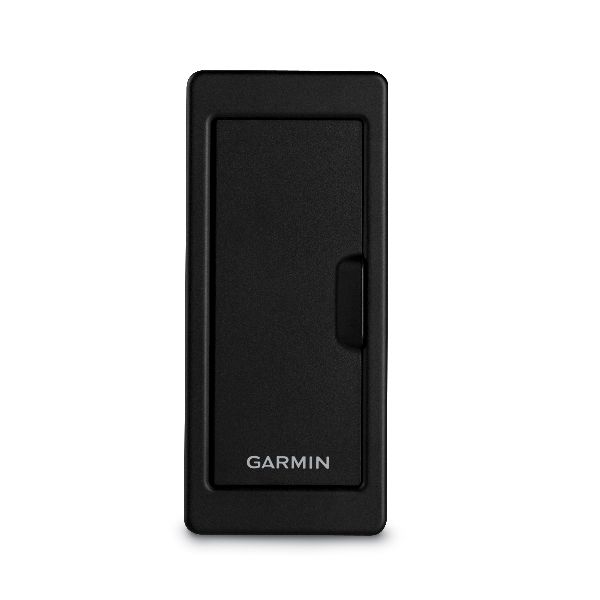

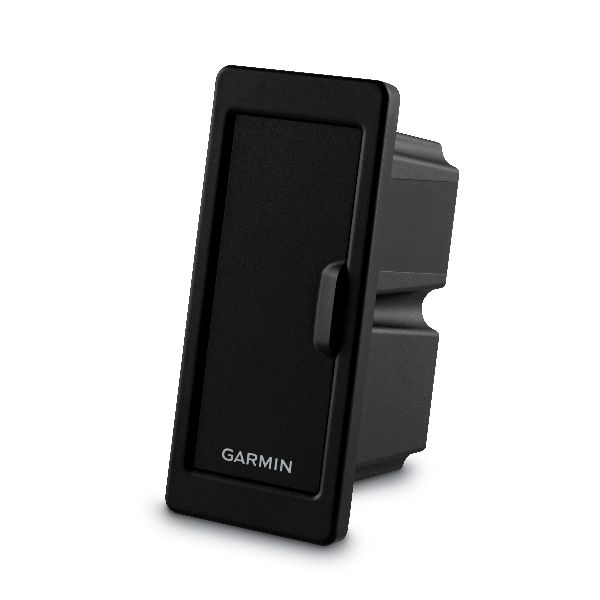

Provide convenient remote mounting and a single access point for 2 SD™ card slots for mapping with our Garmin Card Reader. A waterproof, magnetic door allows the card reader to be mounted horizontally or vertically — and you can add multiple card readers for additional access points.

Dimensions (W×H×D): 2 1/8" x 4 7/8" x 3 3/16" (54.3 x 124.1 x 81.2 mm)
Weight: 6.3 oz. (178.6 g)
Temperature range: From 5° to 158°F (from -15° to 70°C)
Material: Fully gasketed, high-impact plastic, waterproof to IPX7 standards
Input power: 10-35 Vdc
Fuse: 7.5 A, 42 V fast-acting
Maximum power usage at 10 Vdc: 2.4 W
Typical current draw at 12 Vdc: 80 mA
Maximum current draw at 12 Vdc: 240 mA
Compass-safe distance: 36" (915 mm)
