Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4" outside the hull and can sit on the trailer rollers/bunks without damage.

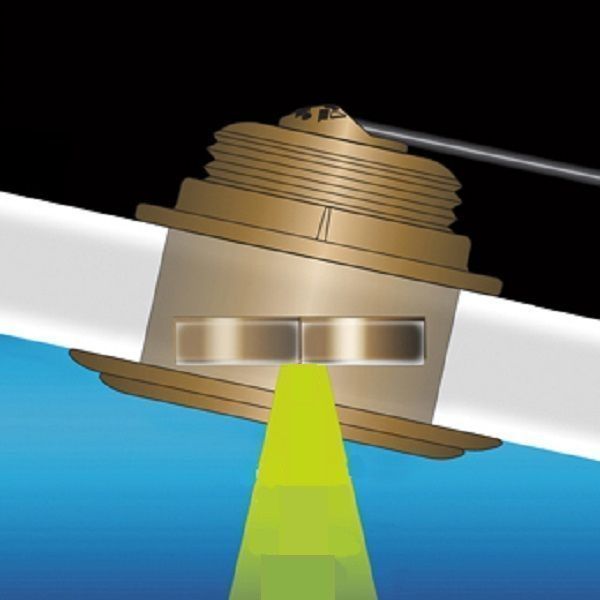

The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies.
An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 2,000 ft; an operating frequency of 40-60 kHz; a beamwidth of 16-25 degrees; and a 16 to 24 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Specification
Tranducer Specification |
Number of pins on the connector | 8-Pin |
Frequency | 40-60 kHz |
Transmit Power | 1,000 W RMS / 4,000 W Peak-to-Peak |
Max Depth | 2,000 feet (610 meters) |
Beam Width LF/HF | 16°-25° |
Deadrise | 16° to 24° (20° Tilt) |
Read Water Temperature | Yes |
In The Box
- Tranducer (8-pin)
- Hardware
- Documentation
