GSD™ 25 Premium Sonar Module

Accessories available for this product


Premium CHIRP and Scanning Sonar Module

  • Premium remote network sonar solution
  • Includes true dual-channel 1 kW CHIRP, plus CHIRP SideVü and ClearVü scanning sonar for the clearest images on the water (transducers sold separately)
  • Provides serious sportsfishers outstanding fishfinding and bottom tracking capabilities
  • Helps distinguish between small and closely spaced fish at key fishing depths
  • Depth capability to 5,000 feet


The GSD 25 premium sonar module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities. It offers dual-channel 1 kW CHIRP, plus Garmin CHIRP ClearVü™ and Garmin CHIRP SideVü™ sonar scanning for the clearest scanning images on the water. The images sent to your compatible Garmin chartplotter have target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 5,000 feet.

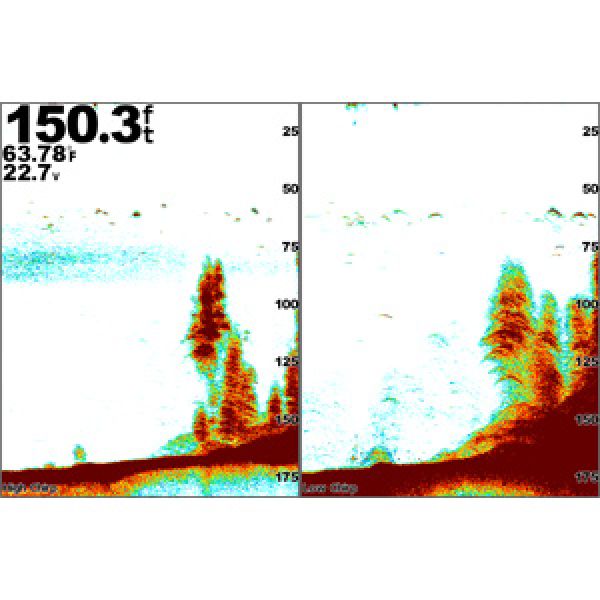

True Dual-Channel 1 kW CHIRP

CHIRP is the most sophisticated sonar technology available for use by the fishing and boating public. CHIRP is an acronym for Compressed High-Intensity Radiated Pulse. What it means to you is much better target resolution, clarity and crispness than any other sonar system. Having Garmin true dual 1 kW CHIRP as your traditional sonar allows you to adjust CHIRP frequencies to low/medium, low/high, medium/high to further optimize your sonar performance. Transducer sold separately.

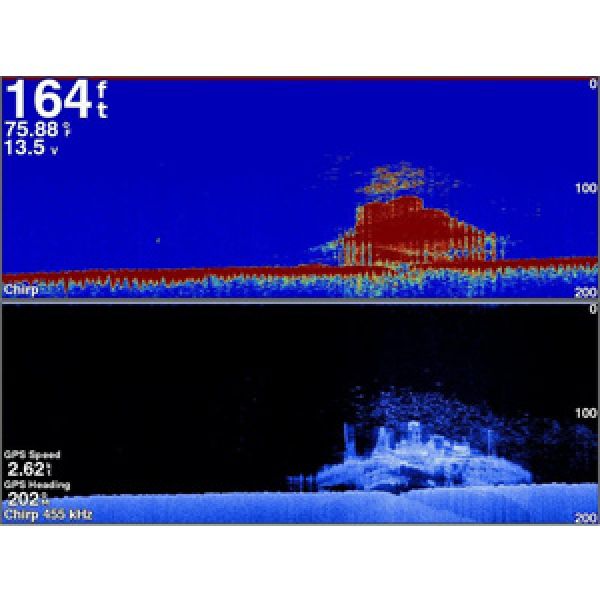

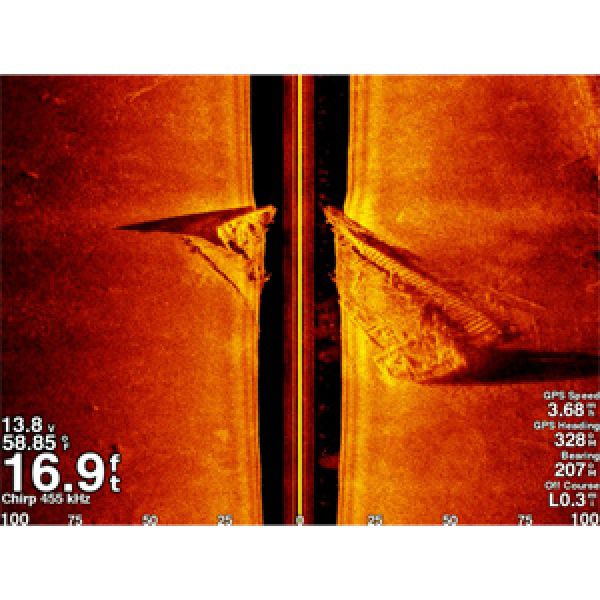

Clearest Scanning Sonar Images on the Water

Adding CHIRP technology to ClearVü and SideVü scanning sonar further enhances the resolution, target separation and clarity of the sonar images of fish and structure that pass below and to the sides of your boat. Built-in to our new GPSMAP xsv combos and GSD 25 Premium Sonar Module, it uses 1 transducer for traditional CHIRP HD-ID sonar and CHIRP ClearVü and SideVü scanning sonar. Transducer sold separately.


Choose a Garmin Transducer

This new sonar is so unique we have developed our own proprietary transducers that are specially designed to work with our new sonar to provide the very best performance. See our Transducer Selection Guide to find a transducer that`s right for you.

Marine Network

Specification


General

Case material

Polycarbonate

Physical dimensions

9.9"×7.6"×2.6" (251 mm × 192 mm × 66 mm)

Weight

1.7 lbs (0.77 kg)

Water rating

IPX7

Garmin Marine Network™ ports

1

Temperature range

From 5°F to 158°F (from -15°C to 70°C)


Sonar Features & Specifications

Frequencies supported

Traditional: 50/200, 77/200, 83/200

Single Channel CHIRP: 40-250

Dual Channel CHIRP: 40-250

SideVü/ClearVü: CHIRP 455/800 & CHIRP 260/455

(dependent on transducer)

Transmit power

1 kW

ClearVü

Yes with CHIRP

SideVü

Yes with CHIRP

Maximum depth

5,000 ft. (1,524 m)

Traditional CHIRP capable

Yes


Electrical

Alimentation

10-35 V

Consommation d`énergie

27 W maximum

Fusible

4.0 A

Distance de sécurité du compas

30 cm (11.8 in.)


In The Box

  • GSD 25
  • Right-angle power cable (6 feet)
  • Right-angle network cable (6 feet)
  • Mounting hardware
  • Documentation
