This thru-hull transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional and CHIRP DownVü™ transducer is optimized for depth performance and rough conditions. This 8-pin thru-hull transducer have a stainless steel stem.

The CHIRP DownVü™ element has a power rating of 500 W and operating frequencies of 260/455 kHz. The traditional sonar has a power rating of 600 W and operating frequencies of 50/200 kHz. It also includes a built-in fast response temperature sensor. For hull deadrises less than 25 degrees.

Specification

Tranducer Specification
Weight	4.79 lb. (2.17 kg)
Cable Lenght	30 feet (9 meters)

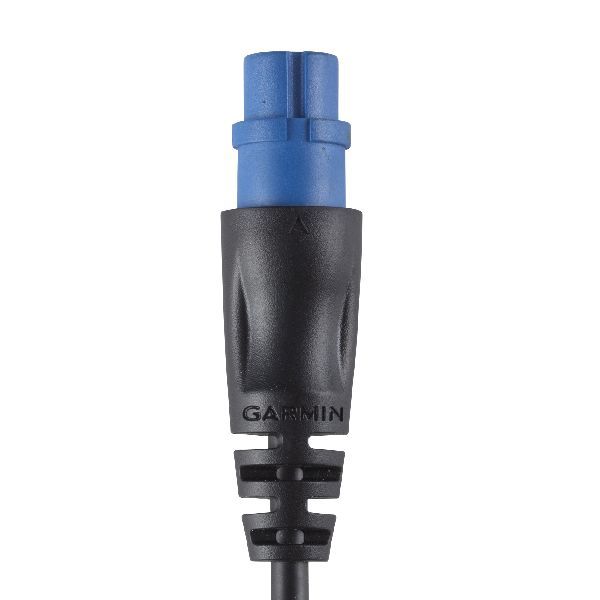

Number of pins on the connector	8-Pin
Dimensions	9.0 x 2.5 x 1.2 Inch (228 x 62 x 30 mm) Thru-Hull Stem : Ø1.0 x 5.3 in (Ø24 x 135 mm) Thru-Hull Fairing Block : 12.7 x 4.6 x 2.5 in (323 x 116 x 64 mm)
Frequency	Traditional : 50/200 kHz DownVü™ : CHIRP 245-275kHz & CHIRP 445-465kHz
Transmit Power	Traditional : 600 W RMS / 2,400 W Peak-to-Peak DownVü™ : 500 W RMS / 2,000 W Peak-to-Peak
Max Depth	Traditional : 1,500 feet (460 meters) DownVü™ : 1,000 feet (305 meters)
Beam Width LF/HF (-3dB)	Traditional : 40°/10° DownVü™ : 2.0°/51°@260kHz & 1.4°/29°@455kHz
Read Water Temperature	Yes

In The Box

GT21-TH tranducer (8-pin)
Fairing Block ( 010-12224-01 )
Mounting Hardware ( 010-12226-00 )
Documentation
