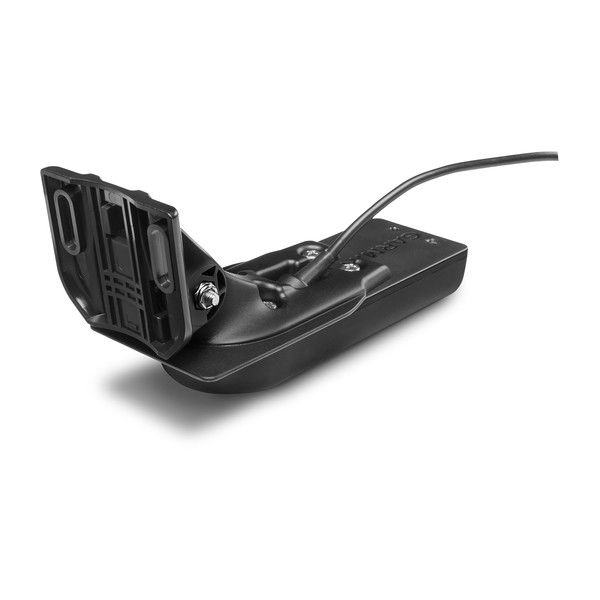

GT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP ClearVü (455/800 kHz) element has a power rating of 350 W.

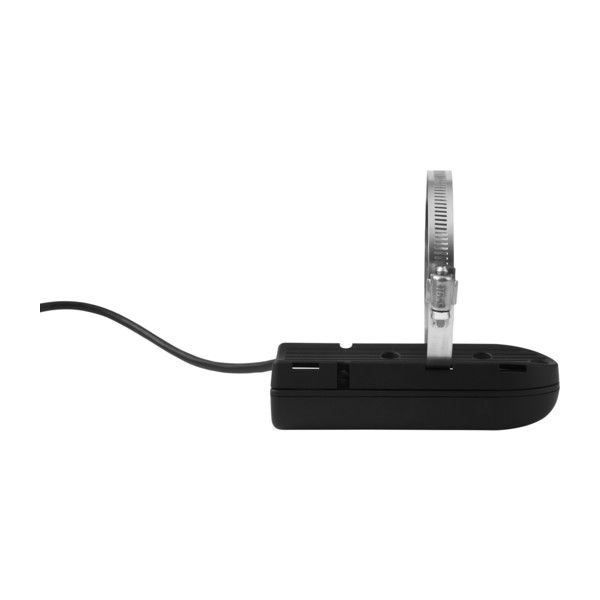

GT22HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.

Specification

General
Frequency	CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Power	CHIRP Traditional 250 W; ClearVü 350 W
Beamwidth	Traditional (24-16); ClearVü (2.0 @ 455 kHz) & (1.0 @ 800 kHz)
Maximum depth	Traditional: 800 ft.; ClearVü: 500 ft.
Depth/Speed/Temperature	Depth and Temperature
Number of pins	8-pin
Cable length	20 ft.
Supported deadrise/Transom angles	0°-70° degree transom
