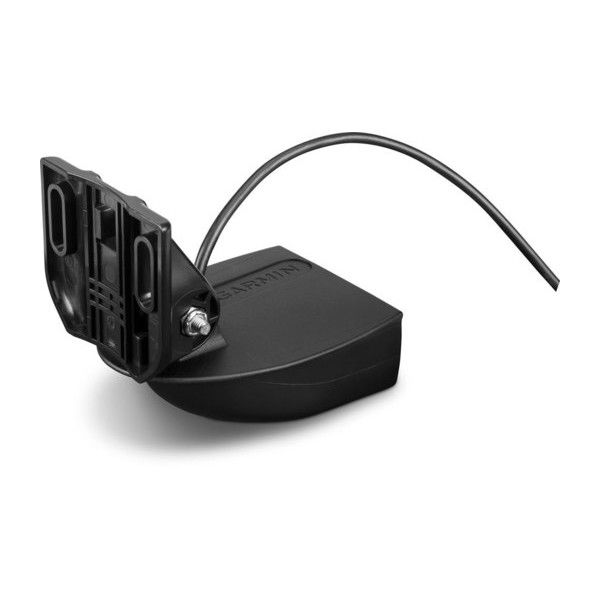

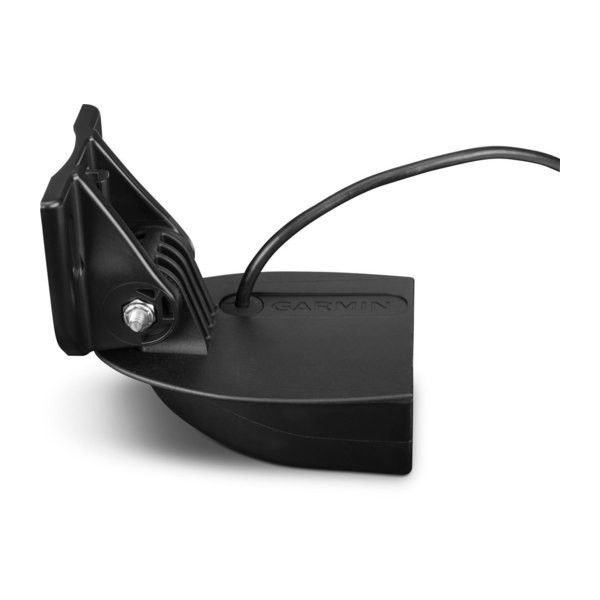

GT15M-TM transducer is perfect for fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation to depth up to 1,900 feet (579m).
The 8-pin transducer features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be mounted on the transom.
Specification
Tranducer Specification | |
Weight |
1.00 lb. (0.45 kg) |
Cable Lenght |
20 feet (6 meters) |
Number of pins on the connector |
8-Pin |
Dimensions |
. x . x . Inch ( x x mm) |
Frequency |
Traditional : CHIRP 85-165 kHz |
Transmit Power |
Traditional : 600 W RMS / 2,400 W Peak-to-Peak |
Max Depth |
Traditional : 1,900 feet (579 meters) |
Beam Width LF/HF (-3dB) |
Traditional : 24°/13° |
Read Water Temperature |
Yes |
In The Box
- GT15M-TM tranducer (8-pin)
- Transom mount/Trolling motor mount ( 010-12006-20 )
- Hardware
- Documentation
