Get ultra-clear sonar pictures of objects, structure and fish that pass below your boat with this all-in-one 4-pin transducer.

This 20 feet (6 meters) transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 feet (580 meters) (traditional) and 750 feet (230 meters) (DownVü™); an operating frequency of 77/200 kHz (traditional) and 455 (DownVü™); and a 0° to 70° transom angle.

Specification

Tranducer Specification
Weight	0.79 lb. (0.36 kg)
Cable Lenght	20 feet (6 meters)
Number of pins on the connector	4-Pin
Dimensions	5.9 x 2.0 x 0.9 Inch (150 x 52 x 22 mm)
Frequency	Traditional : 77/200 kHz DownVü™ : CHIRP 435-475kHz & CHIRP 800-840kHz
Transmit Power	Traditional : 500 W RMS / 2,000 W Peak-to-Peak DownVü™ : 500 W RMS / 2,000 W Peak-to-Peak
Max Depth	Traditional : 1,900 feet (580 meters) DownVü™ : 750 feet (230 meters)
Beam Width LF/HF (-3dB)	Traditional : 45°/15° DownVü™ : 2.5°/53°
Read Water Temperature	Yes

In The Box

GT20-TM tranducer (4-pin)

Transom mount

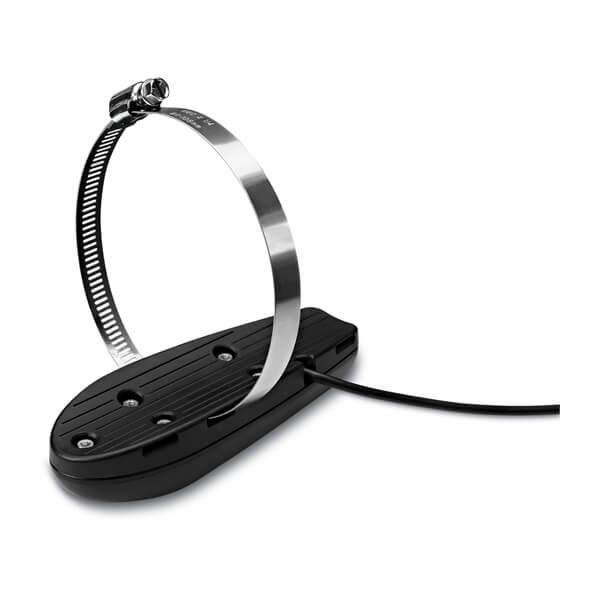

Trolling motor mount ( 010-12105-10 )

Hardware

Documentation
