GARMINTransducer GT20-TM CHIRP DownVü™ & Traditional Transom Mount 8-Pin

129,99 $

Where to buy this product

Find the nearest retailer

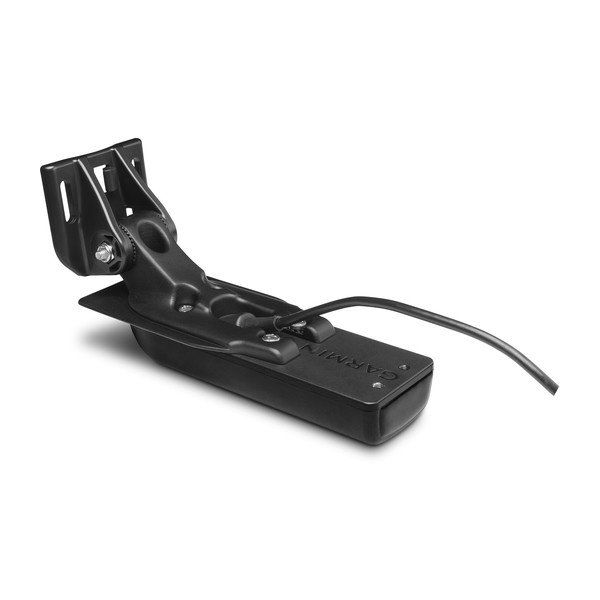

Transducer GT20-TM CHIRP DownVü™ & Traditional Transom Mount 8-Pin

Get ultra-clear sonar pictures of objects, structure and fish that pass below your boat with this all-in-one 8-pin transducer.



This 20 feet (6 meters) transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 feet (580 meters) (traditional) and 750 feet (230 meters) (DownVü™); an operating frequency of 77/200 kHz (traditional) and 455 (DownVü™); and a 0° to 70° transom angle.



Specification

Tranducer Specification

Weight

0.79 lb. (0.36 kg)

Cable Lenght

20 feet (6 meters)

Number of pins on the connector

8-Pin

Dimensions

5.9 x 2.0 x 0.9 Inch (150 x 52 x 22 mm)

Frequency

Traditional : 77/200 kHz

DownVü™ : CHIRP 435-475kHz & CHIRP 800-840kHz

Transmit Power

Traditional : 500 W RMS / 2,000 W Peak-to-Peak

DownVü™ : 500 W RMS / 2,000 W Peak-to-Peak

Max Depth

Traditional : 1,900 feet (580 meters)

DownVü™ : 750 feet (230 meters)

Beam Width LF/HF (-3dB)

Traditional : 45°/15°

DownVü™ : 2.5°/53°

Read Water Temperature

Yes



In The Box

  • GT20-TM tranducer (8-pin)
  • Transom mount

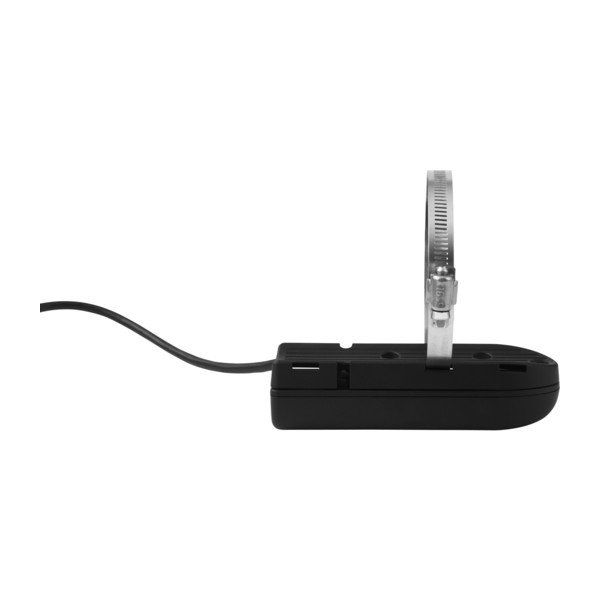

  • Trolling motor mount ( 010-12105-10 )
  • Hardware
    •
  • Documentation
