GARMINTransducer GT30-THP CHIRP DownVü™ & CHIRP SideVü™ Scanning Pair Thru-Hull 12-Pin in Stainless Steel

1 819,99 $

Where to buy this product

Find the nearest retailer
Transducer GT30-THP CHIRP DownVü™ & CHIRP SideVü™ Scanning Pair Thru-Hull 12-Pin in Stainless Steel

Get ultra-clear sonar pictures of objects, structure and fish that pass below and to the side of your boat with this 12-pin thru-hull transducer with stainless steel stem.



This transducer with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (DownVü™) and 500 ft left and right (SideVü™); an operating frequency of CHIRP 455/800 kHz¹; for hull deadrises less than 25 degrees. Pair it with your GCV™ 10 scanning sonar module.





¹CHIRP frequency bandwidth is 445 to 475 kHz and 805 to 840 kHz.



Specification

Tranducer Specification

Weight

2.08 lb. (0.94 kg)

Cable Lenght

5 feet (1.5 meters) + 30 feet (9 meters) Y-Cable

Number of pins on the connector

12-Pin

Dimensions

Transducer : 7.8 x 1.5 x 1.3 Inch (198 x 38 x 33 mm)

Thru-Hull Stem : Ø1.0 x 4.9 in (Ø24 x 122 mm)

Thru-Hull Fairing Block : 11.5 x 3.2 x 2.1 in (292 x 82 x 52 mm)

Frequency

DownVü™ : CHIRP 425-485kHz & CHIRP 790-850kHz

SideVü™ : CHIRP 425-485kHz & CHIRP 790-850kHz

Transmit Power

DownVü™ : 500 W RMS / 2,000 W Peak-to-Peak

SideVü™ : 500 W RMS / 2,000 W Peak-to-Peak

Max Depth

DownVü™ : 750 feet (230 meters)

SideVü™ : 500 feet (152 meters)

Beam Width LF/HF (-3dB)

DownVü™ : 1.4°/53°@455kHz & 0.8°/30°@800kHz

SideVü™ : 1.1°/53°@455kHz & 0.7°/30°@800kHz

Read Water Temperature

Yes

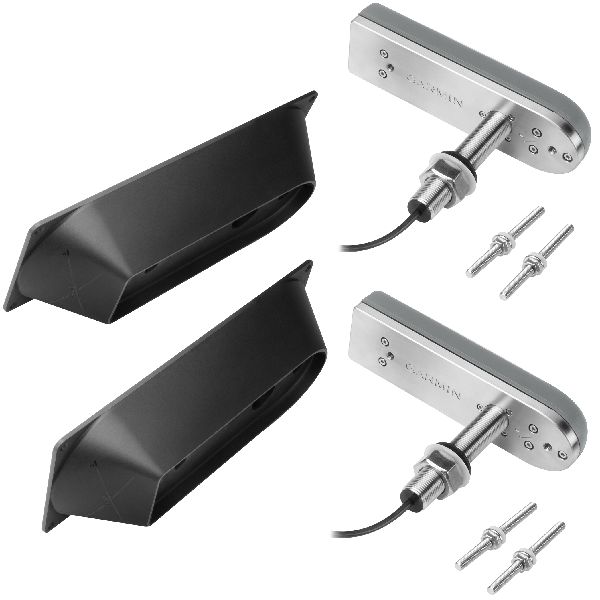

In The Box

  • 2x GT30-TH tranducer (12-pin)
  • Y Cable 32.81 feet (10 meters) ( 010-12225-00 )

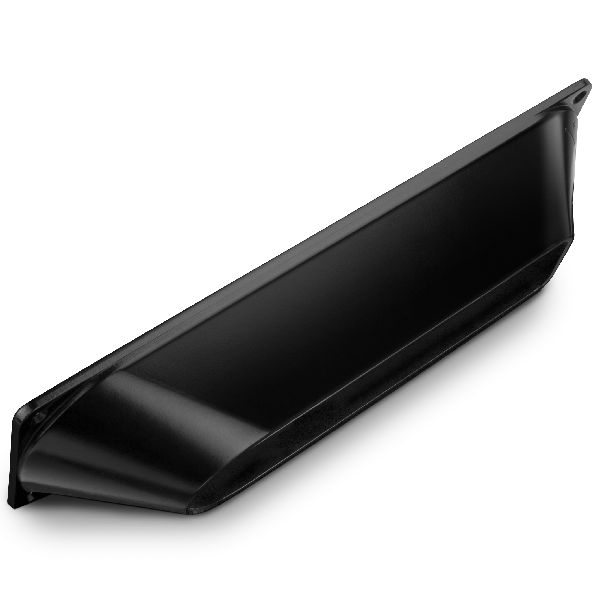

  • 2x Fairing Block ( 010-12224-00 )
  • 2x Mounting Hardware ( 010-12226-00 )
  • Documentation
