This thru-hull transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional CHIRP and CHIRP DownVü™/SideVü™ transducer is optimized for depth performance and rough conditions. This 12-pin thru-hull transducer have a stainless steel stem.
The CHIRP DownVü™/SideVü™ elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It also includes a built-in fast response temperature sensor.For hull deadrises less than 25 degrees.
Specification
Tranducer Specification | |
Weight |
8.67 lb. (3.93 kg) |
Cable Lenght |
5 feet (1.5 meters) + 30 feet (9 meters) Y-Cable |
Number of pins on the connector |
12-Pin |
Dimensions |
9.0 x 2.5 x 1.6 Inch (228 x 62 x 41 mm) Thru-Hull Stem : Ø1.0 x 5.3 in (Ø24 x 135 mm) Thru-Hull Fairing Block : 12.7 x 4.6 x 2.5 in (323 x 116 x 64 mm) |
Frequency |
Traditional : CHIRP 80-160 kHz DownVü™ : CHIRP 245-275kHz & CHIRP 445-465kHz SideVü™ : CHIRP 245-275kHz & CHIRP 445-465kHz |
Transmit Power |
Traditional : 600 W RMS / 2,400 W Peak-to-Peak DownVü™ : 500 W RMS / 2,000 W Peak-to-Peak SideVü™ : 500 W RMS / 2,000 W Peak-to-Peak |
Max Depth |
Traditional : 1,800 feet (550 meters) DownVü™ : 1,000 feet (305 meters) SideVü™ : 750 feet (230 meters) |
Beam Width LF/HF (-3dB) |
Traditional : 24°-13° DownVü™ : 2.0°/51°@260kHz & 1.4°/29°@455kHz SideVü™ : 2.0°/51°@260kHz & 1.4°/29°@455kHz |
Read Water Temperature |
Yes |

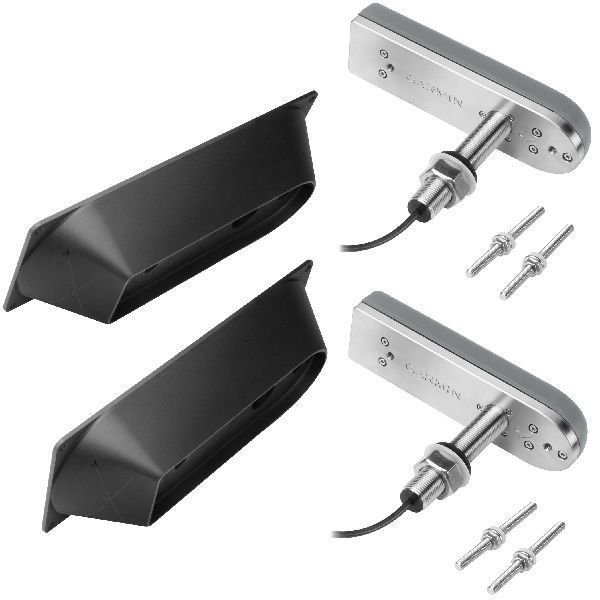

In The Box
- 2x GT51M-TH tranducer (12-pin)
- Y Cable 32.81 feet (10 meters) ( 010-12225-00 )
- 2x Fairing Block ( 010-12224-00 )
- 2x Mounting Hardware ( 010-12226-00 )
- Documentation
